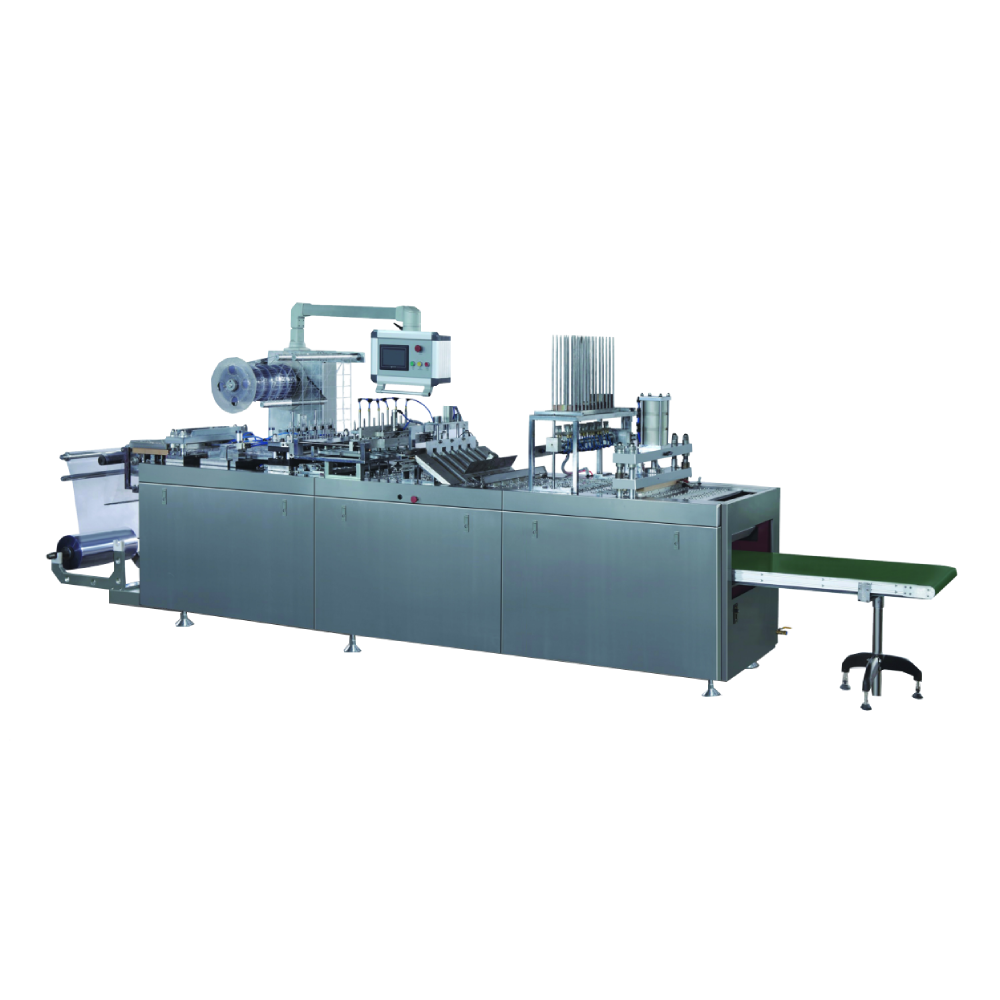

Fully Automatic Linear Blister Packaging Machine

This machine is suitable for packaging everyday items, stationery, small hardware, cosmetics, and lighting bulbs with vacuum-formed blister card packaging. It is used for packaging items such as chopsticks, spoons, staplers, locks, flashlights, sockets, bearings, etc., enhancing the product grade.

Performance features:

This equipment is a new generation packaging machine successfully developed through continuous improvement and innovation by our company's researchers. It adopts a human-machine interface, PLC control, encoder support, touchscreen operation, automatic counting, adjustable stroke, precision, and convenience. With stepless frequency conversion speed control, the machine runs stably and can adapt to various sizes and specifications of vacuum-formed blister card packaging. It is easy to operate, durable, clean, and hygienic. Equipped with a safety emergency stop device to ensure emergency measures during production, increasing the operational safety factor. It is currently the most ideal packaging equipment.

Technical and quality standards:

1.The working efficiency of this equipment is set to be above 10-20 cycles per minute. Changing the feeder and template in the same specifications and model does not affect the equipment's accuracy, ensuring stable operation and meeting the requirements of the production process. The speed of the equipment can be adjusted according to material and quality requirements.

2.The equipment uses a vacuum generator and imported cylinders and electrical components to enhance stability.

3.The equipment has detection functions for PVC/PET fragments, finished pieces, and paper cards.

4.The equipment uses a human-machine interface and PLC control system, with features such as counting, startup password, fault reminder (warning light alarm), and maintenance reminder (warning light alarm).

5.Convenient for cleaning residues.

6.Ensure correct placement of tools by each robotic arm.

7.Party A provides raw materials such as paper cards, sheets, and products for Party B to conduct machine trials.

8.Comes with spare parts, accessories, and special tools, the quantity of which is provided in the packing list.

9.The blister feeding push plate uses a guide rail fixing.

10.The material transfer robotic arm uses a servo module traction.

11.The loading bin and robot use an acrylic door-type cover.
